Product Description
Leica DISTO D5 Indoor/Outdoor Laser Distance Meter – Item #: 950908

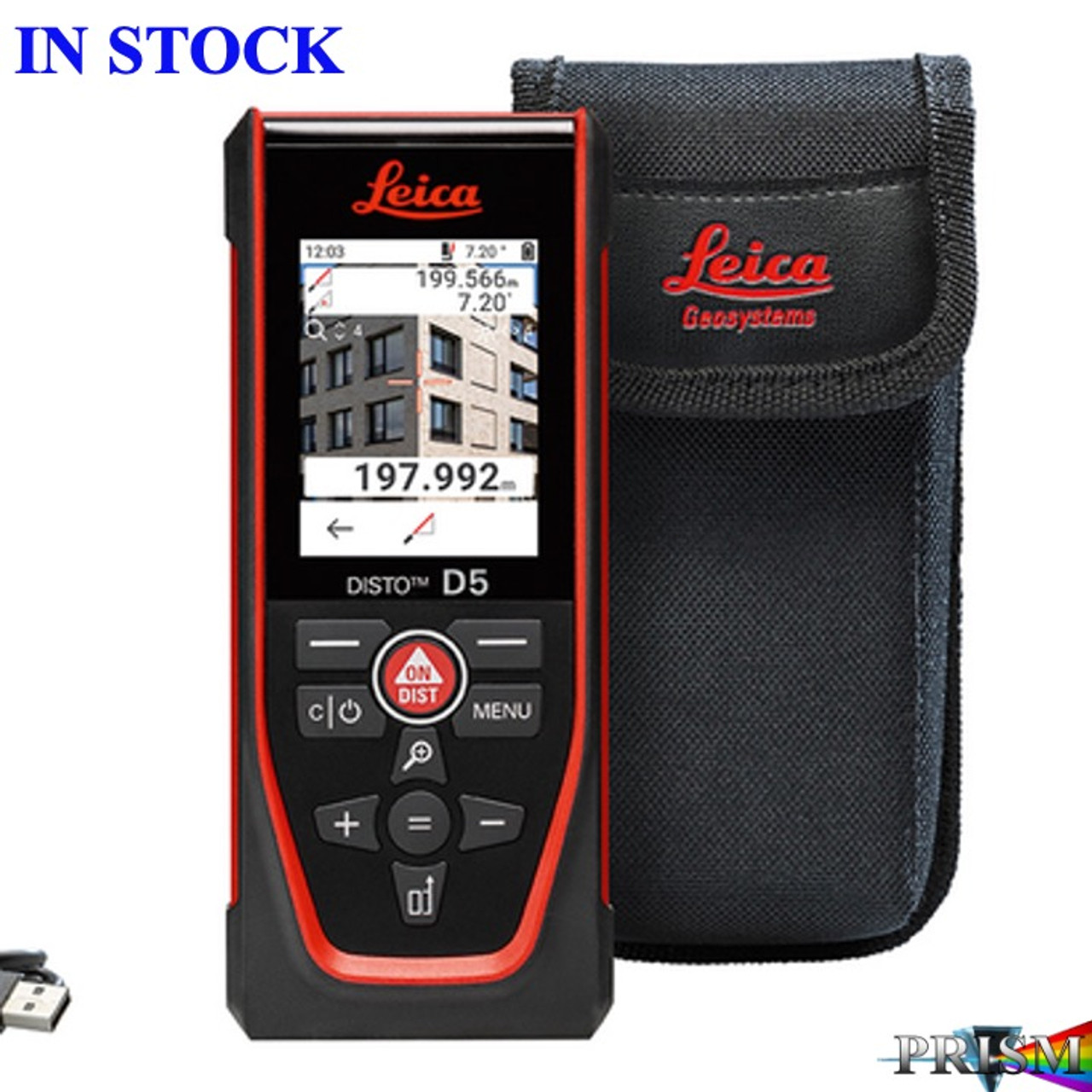

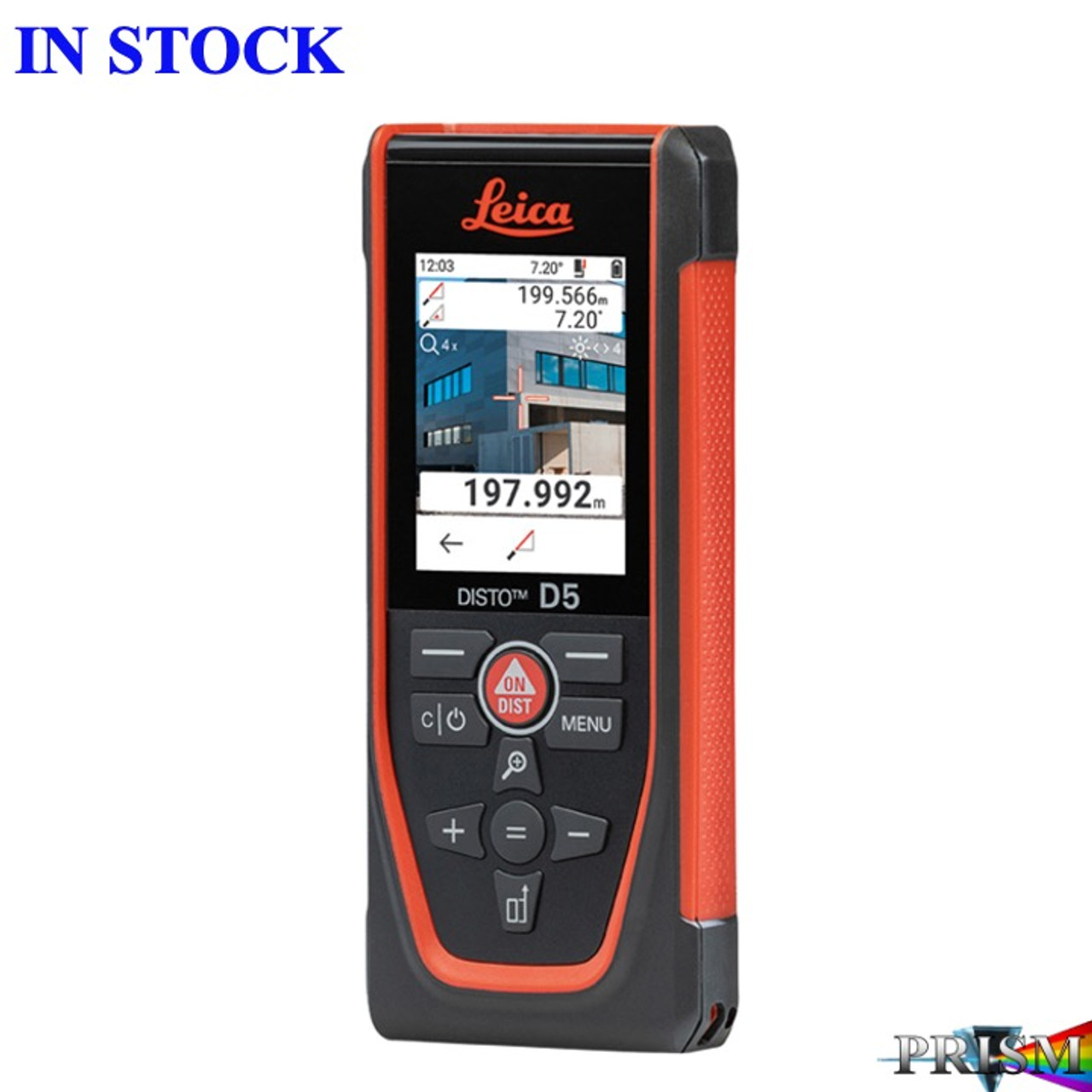

The Leica DISTO D5 is a high-performance laser distance meter designed for demanding indoor and outdoor measurement tasks. It features a 2.4" high-resolution color display, an integrated digital Pointfinder camera for precise aiming in bright sunlight, and Bluetooth® Smart for seamless data transfer. With an impressive measuring range of up to 200m (656 ft) and ±1mm accuracy, the D5 is ideal for construction, surveying, and architectural applications. Built for durability, it offers IP54 protection, a long-lasting Li-ion rechargeable battery, and intuitive interface with angle and area/volume calculations.
PRISM GeoSystems is your authorized Leica dealer, offering the DISTO D5 in stock, fully supported with warranty and expert service.
| Leica DISTO D5 | |
| Accuracy with favourable conditions * | 1.0 mm / 1/16" *** |
| Accuracy with unfavourable conditions ** | 2.0 mm / 1/8" *** |
| Range with favourable conditions * | 0.05 – 200 m / 0.16 – 660 ft *** |
| Range with unfavourable conditions ** | 0.05 – 120 m / 0.16 – 400 ft *** |
| Smallest unit displayed | 0.1 mm / 1/32 in |
| X-Range Power Technology | yes |
| Laser Class 2 | 635 nm, <1 mW |
| Digital Pointfinder with 4-fold zoom | yes |
| Tilt measuring range **** | 360° |
| Tilt measuring tolerance | ± 0.2° |
| ø laser point | at distances | 6 / 30 / 60 mm | 10 / 50 / 100 m |
| Protection class | IP54 (dust- and splash water protected) |
| Auto. laser switch off after | 90 s |
| Auto. power switch off after | 180 s |
| Bluetooth® Smart | Bluetooth® v5.0 |
| Range of Bluetooth® | up to 10 m |
| Battery durability (Li-Ion 2 000 mAh) | up to 5’000 measurements up to 10 hours operation time |
| Dimension (H x D x W) | 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in |
| Weight (with batteries) | 180 g / 6.35 oz |
| Temperature range storage | operation | -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F |
* favourable conditions: white and diffuse reflecting target (white painted wall), low background illumination and moderate temperatures.
** unfavourable conditions: targets with lower or higher reflectivity or high background illumination or temperatures at the upper or lower end of the specified temperature range.
*** Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. Above 5 m the tolerance may deteriorate according to the values given in the manual of the unit.
**** after user calibration. Additional angle related deviation are according to the values given in the manual of the unit.
